Slider

The Slider component is the Komplete UI representation of a KSP ui_slider.

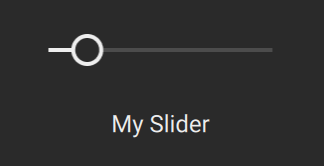

Slider Screenshot

import { Slider } from kontakt_controls

export var main = Slider(
    control_id: "my_slider",
    label: "My Slider",
)

Behaviours​

  • holding Shift while dragging enters a "finetuning mode" that can be configured via fine_step_count
  • clicking while pressing Ctrl (Windows) / Cmd (macOS) resets the slider to its default value.

Constructor​

control_id: String Required​

This is the name that you assigned to the corresponding KSP ui_knob control.

label: String Required​

The text to display when the control is resting. Typically, a descriptive name for the control.

step_count: Int? = nil​

The number of steps from the slider's min to its max value (both as set in KSP). Leaving it at its default of nil means that the step count will default to a step size of 1.

info

Please note:

  • If you specify a step count that is bigger than max-min it will be clipped to that number.
  • If you specify a step count that does not result in an integer step size, the step count will be adjusted to the nearest number that results in an integer step size.

fine_step_count: Int = 1​

The number of sub-steps that each step (as defined by the step_count property) is divided into when pressing Shift while dragging.

style: SliderStyle = default_slider_style​

Controls the visual appearance of the slider.

See SliderStyle for more details.

label_value_source: LabelValueSource = LabelValueSource.ksp_control_value​

This property controls the source of the value that is being displayed in the slider's label while dragging.

  • LabelValueSource.ksp_control_value makes the slider grab the value directly from the connected KSP control. This value can then further be formatted using the value_to_string property.
  • LabelValueSource.ksp_label_property makes the slider use the text displayed in the KSP label associated with the slider control.

value_to_string: ValueFormatter = default_value_formatter​

Converts the value to a string to be displayed in the label when the user interacts with the control. This property is ignored when label_value_source is set to LabelValueSource.ksp_label_property.

By default simply shows the raw integer value of the control.

sensitivity: Float = 1​

How sensitive the control responds.

When set to 1 one can move over the entire value range by moving from the leading edge to the trailing edge in the drag axis.

disabled: Bool = false​

Disables all user interaction when true.

Disables all user interaction when true.

SliderStyle​

export type SliderStyle = DraggableControlStyle
export var default_slider_style = SliderStyle(
    width: nil,
    height: nil,
    image: default_slider_image,
    handle_size: 16
    padding: EdgeInsets(0),
    label_style: LabelStyle(),
    axis: Axis.horizontal,
    disabled_opacity: 0.24,
)

See DraggableControlStyle

Additional Information​

In KSP it is relatively common to use a ui_slider to implement a control that is visually a knob. You can do this with the Slider as well:

import { Slider } from kontakt_controls

export var main = Slider(
    control_id: "my_slider",
    label: "My Slider",
    style: default_knob_style,
)
